Sample Cutting Machine
Unuo Instruments supplies 2 types of sample cutting machines for lab use mainly. One is pneumatic sample cutting machine, the other one is hydraulic swing arm clicker press. These 2 kinds of sample cutting machines are different in driven method, cutting force, cutting area, and also their dimension.
- Pneumatic sample cutting machine’s cutting force is up to 3 tons. Pneumatic sample press is a relatively small type cutting machine which is very suitable for leather, footwear, and textile testing lab.
- Hydraulic clicker press’s cutting force is up to 20 tons. This kind of sample cutting machine is suitable to cut materials like rubber, shoe sole that thickness is greater than 10mm and is relatively rigid.
Unuo Sample Cutting Machine Conform To: SATRA, GB, ISO, EN, DIN, ASTM, BS, IS, JIS and other footwear testing standards.
Cut With Unuo Sample Cutting Machine
Make Your Quality Visible
Unuo Instruments is a sample cutting machine manufacturer with great cost-effective quality and trustworthy service. Supported by experienced technical and R&D team, Unuo guarantee to supply reliable sample cutting machine. Besides, we can customize the cutting die as per your requirements.
Contact us for details Today!
Sample Cutting Machine Catagory

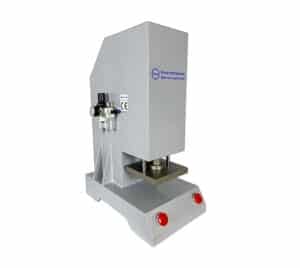

Pneumatic Sample Cutting Machine
- Capacity: 3 tons
- Cutting Area: diameter 20cm
- Can be customized
- Small dimension
Pneumatic Sample Cutting Machine is used to cut samples driven by compressed air. For use with different shapes and dimensions of cutting dies, pneumatic sample press can easily cut your desired samples within seconds.
To meet different types of material cutting force requirements, this sample cutting machine’s cutting force can be adjusted by the pressure valve and pressure boost button, which makes this sample cutting machine more flexible in cutting force.
Hydraulic Swing Arm Clicker Press
- Capacity: 20 tons
- Cutting Area: 350×450 mm
- Can be customized
- Universal Usage
Hydraulic Swing Arm Clicker Press is a universal type of sample cutting machine. Thanks to its cutting force and cutting area, this clicker press can easily cut rubber, shoe sole, leather, textile, and other relatively soft and flexible materials.
Driven by hydraulic oil, this hydraulic swing arm clicker press cutting force is much bigger than the pneumatic cutting machine above. Below is Unuo hydraulic swing arm press cutting force for your choice: 12T, 14T, 16T, 18T, 20T
GSM Cutter is a type of round cutter which is mainly used to cut specific areas or specific diameters from textile fabric or leather. Cutting area 100cm2 is most commonly used for GSM tests. It saves time to calculate and measure the needed area we should cut from textile fabric.
To meet different round cutting requirements, Unuo supplies various kinds of round cutters that differ in cutting area or diameter for your choice.
