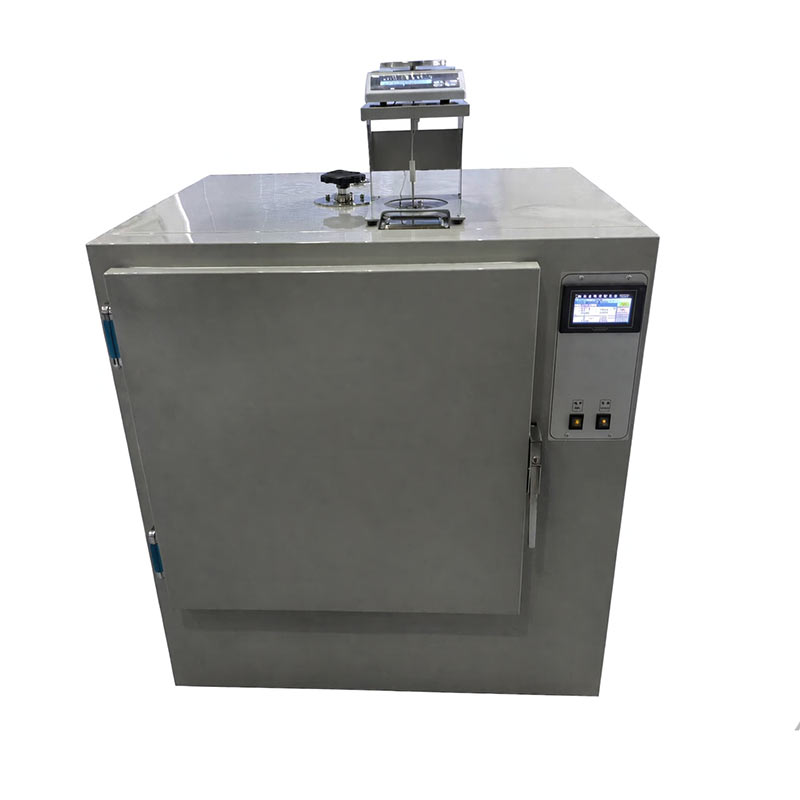

Moisture Regain Oven For Textile, Yarn Cotton UI-TX82
Description
The moisture regain oven quickly measures the regain rate of cotton, wool, bast fibres, silk, man-made fibres and finished textile products. A sample is exposed to moving air heated to a set temperature until it reaches constant mass. All the mass lost during drying is counted as moisture, and the result is reported as moisture content or regain.
1. Unuo Moisture Regain Oven Features
1.1 Heating and temperature control
Heating uses semiconductor micro-electric elements with very low thermal inertia, which keeps the temperature inside the chamber more uniform. An intelligent digital LED controller holds the air at the set temperature. It controls tightly, and the readings are clear and easy to see.
1.2 Fast drying
The moisture regain oven uses forced ventilation with hot-air drying. Samples dry much faster this way. Work gets done sooner, and energy is saved.
1.3 Weighing built in

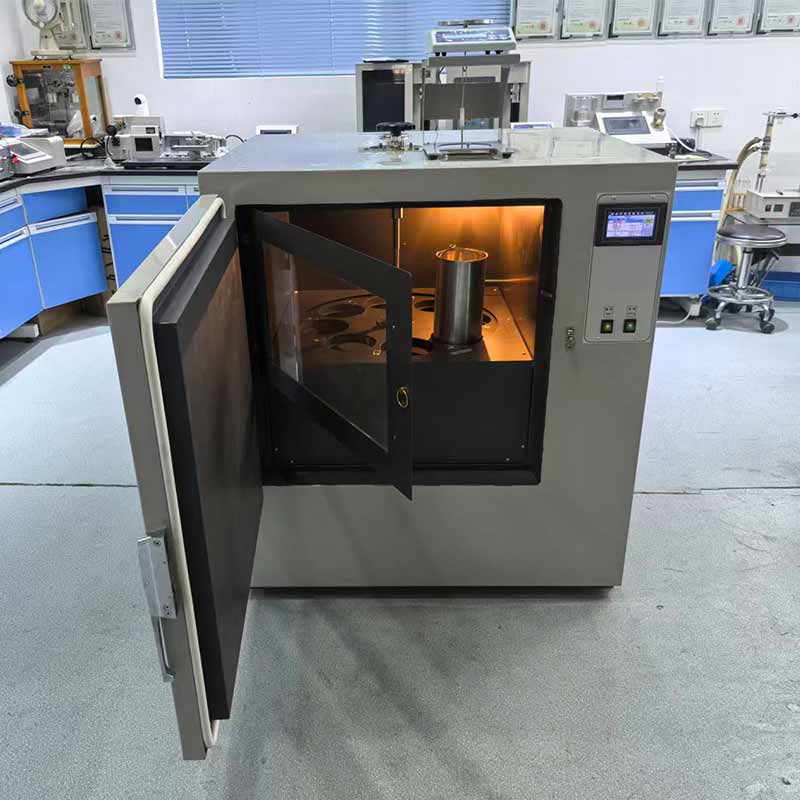

The oven holds eight metal baskets, so eight groups of samples can be dried at one time. A balance is mounted on top of the machine. Samples are weighed before the test starts. When drying is finished, they are weighed again inside the chamber, without taking them out, so the dry weight is measured accurately. The balance reads to 0.01 g, and its capacity can be customised to the customer’s requirements.
1.4 Steady weighing
When the machine stops, a device shuts off the airflow automatically. Still air gives a steady, accurate reading on the balance.
2. Standards
ASTM D2654, BS 4784, ISO 6741, GB/T9995
3. Technical Specification
- Power Supply: AC 380V (Three-phase five-wire system) OR 1 phase 220V
- Heating Power: 2700 W
- Temperature Control Range: Ambient to 150 °C
- Temperature Accuracy: ± 2 °C
- Blower Motor: 370 W / 380 V, 1400 r/min
- Electronic Balance: Capacity 300 g, Readability ≤ 0.01 g
- Drying Time: ≤ 40 minutes (For standard textile materials under normal moisture regain, test temperature 105 °C)
- Air Velocity inside Baskets: ≥ 0.5 m/s
- Ventilation Rate: > 1/4 of chamber volume per minute
- Overall Dimensions (L × W × H): 990 × 850 × 1100 mm
- Chamber Dimensions (L × W × H): 640 × 640 × 360 mm
