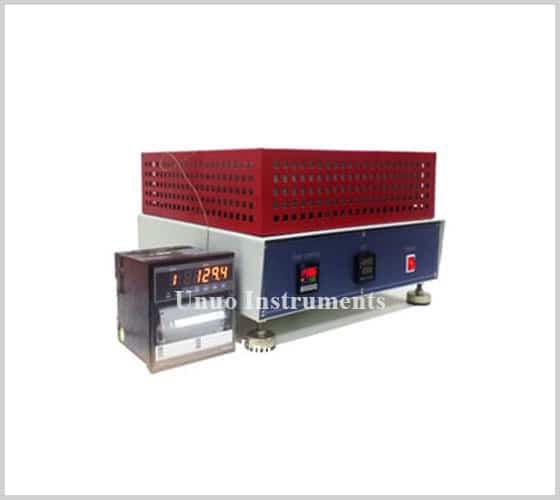

Shoe Heat Insulation Tester UI-FT08

Shoe Heat Insulation Tester is used to test shoe heat insulation / thermal insulation against hot performance.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
  • ISO 20344 , GB/T 20991, AS/NZS 2210.2

Description

Shoe Heat Insulation Tester – Thermal Insulation Tester is used to test shoe heat insulation / thermal insulation against hot performance. Place the shoe in sandbath and the footwear shall contact with the plate(forepart and the heel) in certain temperature for a given period. Then to measure the temperature increase inside of the shoe. The contact temperature and time is specified in production standard.

Unuo  Shoe Thermal Insulation Against Heat is designed and applicable according to ISO 20344 , GB/T 20991, AS/NZS 2210.2  and etc.

Unuo Shoe Heat Insulation Tester Specification

ModelUI-FT08
Sandbath Size(40±2*40±2)cm,Height>5cm
Hot Plate Temperature RangeRT~250°C(Accuracy ±5C)
Temp Sensor inside ShoeSoldered on a thick (2 ± 0.1 mm) diameter (15 ± 1 mm) copper plate
Stainless steel ballsDiameter 5mm, 4kg
Power1∮, AC220V
StandardISO 20344 section 5.12,GB/T 20991 section 5.12,AS/NZS 2210.2 section 5.12
AccessoriesStainless steel balls (4kg)

Temperature Recorder 1set
