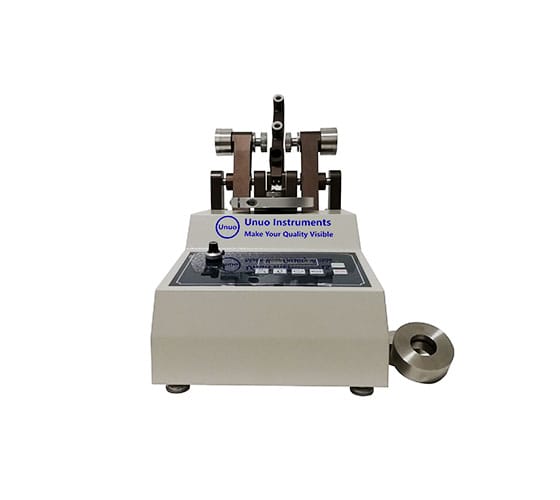

Taber Abrasion Machine UI-FT42

Taber Abrasion Machine is used to test abrasive wear resistance of fabric, leather, rubber, paper and etc.

  • ASTM D3884 | ASTM D1044 | ISO 5470-1
  • ASTM D1175 | DIN 53109 | ASTM D4060
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
Get A Quote Today

Description

Taber Abrasion Machine – Taber Abrasion Tester is used to test sample abrasive wear resistance by rubbing the sample on the turntable platform with Taber abrasion wheels. Taber Abrasion Test Method includes ASTM D3884, ASTM D1044, ASTM D4060, ASTM D1175, ISO 5470-1, DIN, JIS and etc. Taber Abrasion Resistance Test Materials include textile fabric, rubber, leather, fabric and etc.

Unuo Instruments manufactures and supplies Taber Abrasion Tester For Sale. Contact us TODAY for Taber Abrasion Tester Price & more details.

* We have few sets of used taber abrasion tester for sale which are also in excellent conditions. Contact us for the details.

1. Unuo Taber Abrasion Tester Features

  • 1 or 2 test positions available;
  • Various kinds of Taber abrasion wheels for choice;
  • (ASTM D4060 CS17 wheel, Taber abrasion ASTM D3884 CS10, CS17 and etc.)

2. Taber Abrasion Machine Principle

Taber Abraser is a Rotary Platform Abraser, which consists of a rotary platform with 2 arms (with weight). For different materials’ Taber abrasion test, it may need different kinds of abrasive wheels to complete the test. For example, leather abrasion test normally uses H18 abrasive wheels.

Place the sample on the turntable platform. Clamp the abrasive wheels and load on the 2 arms. And make sure the abrasive wheels are contacting the sample. The platform would be turned driven by the motor and the sample would be rubbed by the abrasive wheels. We also supply other types wear abrasive tester like DIN Abrasion Tester for choice.

3. Taber Test Method

Unuo Taber abraser meets various test methods which include ASTM D3884, ASTM D1175, DIN 53109, ASTM D1044, ASTM D4060, ISO 5470-1 and etc. By adopting different type of abrasive wheels, this taber machine can test textile fabric, leather, paper, plastic, painting and other materials.

Taber Abrasion ASTM D3884 is a abrasion resistance method to test textile fabrics. This method requires Rotary platform bouble head abrader (taber abrader), abrasive wheel (resilient or vitrified-based), resurfacing device like S-11, Vacuum suction to complete the test.

* More Abrasion Method Here

Inform us your test method. Our techical dept. would provide you with detailed suggestion.

4. Taber Abrasion Machine Specification

ModelUI-FT42
Taber Wear Test StandardsASTM D1044, ASTM D3884, DIN 52347, DIN 53109,

ISO-5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096

Test Positions1 or 2
Speed60rpm / 70±2 rpm (adjustable)
Distance between abrasive wheel to the central of turntable37 mm~38m
Distance between 2 abrasive wheels52.4 mm
Weight250g、750g、1000g
CounterLCD display, 0~999,999
Power1∮ 220V

Unuo Instruments supplies taber abraser for sale with tech guaranty. If you are looking for a quality taber test machine, why not Contact Unuo Today! to get taber abraser price and more details today? We would reply within 12 hours or sooner.
