Cold Ross Flex Tester UI-FT27B

Cold Ross flex tester is used to test the cut growth in rubber vulcanizates under continuously bend flexing in 90° in low temperature.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO 17025 calibrated certificate
  • ASTM D1052, SATRA TM60, ISO 4643 and etc.

Description

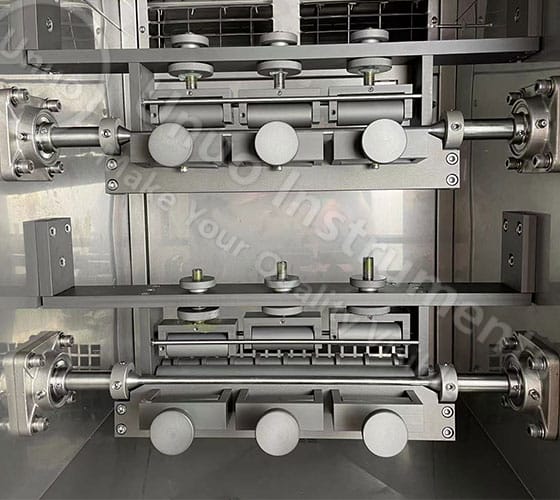

Cold Ross Flex Tester – Ross Flex Machine is used to test the cut growth in rubber vulcanizates under continuously bend flexing in 90° in low temperature chamber. Ross Flex Test Method includes ASTM D1052, SATRA TM60, ISO 4643 and etc. Ross flex machine is one of the most common sole testing machines in footwear testing Lab.

Unuo Cold Ross Flex Tester Features

  • The test speed adjustable; meet both ASTM D1052 and SATRA TM60;
  • Equipped with 2 pcs chisels -ASTM & SATRA;
  • With safety cover to protect operator; machine would stop once the cover is open;
  • Ross flex tester in room temperature available;

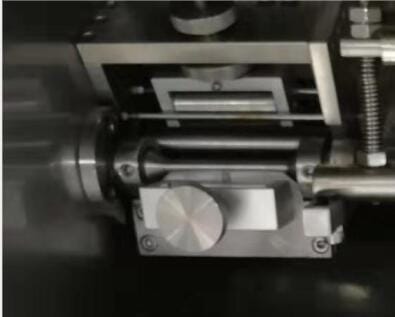

Ross Flexing Test Principle: Cut sample with required chisel. Fix one end of the sample on the the fixed grip and fix the other sample end on the movable grip. Flex the sample in certain speed.

Unuo Low temperature Ross Flex Machine Specification

ModelUI-FT27B-1UI-FT27B-2
Temperature Range-30~100℃
Grips6 sets, can test 12pcs samples
Bending angle90±2°
Speed100± 3 cpm60± 5 cpm
Specimen dimension152 * 25mm150±5 * 25±2mm
CounterLCD display, 0~99,999,999
Power supply1∮AC 220V 50/60HZ 3A
StandardsASTM D1052SATRA TM60, BS5131 : 2.1,

GB 20265, ISO 5423,

HG/T2411, ISO4643
