Density Balance UI-FT44

Density Balance is a lab balance for solids density test like rubber, PVC, EVA and etc.

  • Unuo Instruments
  • 18 months warranty
  • ASTM D792, ISO 2781 method A,
  • GB/T 533 method A

Description

Density Balance – Density Meter is a lab balance for solids density test like rubber, PVC, EVA and etc.

Unuo supplies benchtop digital density meter in accuracy 0.001g=1mg, 0.01g=10mg. Contact us for best density meter price. Here for more rubber testers.

Unuo Digital Density Balance Features:

  • – Accuracy 0.001g, 0.01g for choice;

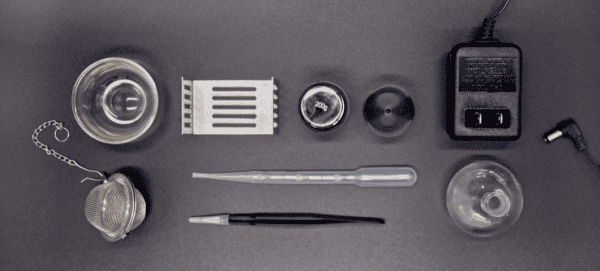

  • – All needed accessories of balance density kit are equipped.
  • – With Windshield;
  • – Automatically Density Calculation;
  • – Benchtop Portable Density Balance.
  • – In Stock; Fast Delivery.

Unuo Density Meter For Solids Principle

Use the digital density analyzer to measure the sample mass in air and water then to calculate sample density.

When the sample is completely immersed in water, the mass of the water is less than the mass in the air, the mass reduction is equal to the mass of the water discharged from the sample, and the volume of the discharged water is equal to the volume of the sample. According to the Archimedes principle, Knowing the mass and the density of the discharged water, the volume of the discharged water can be obtained, and the volume of the sample is known from the volume of the discharged water, so that the volume of the known test and the mass in the air can obtain an accurate sample density.

The density would be automatically calculated by the balance density kit.

Unuo Density Meter – Densimeter Specification

Model

UI-FT44A

UI-FT44B

Capacity/Accuracy

210g/1mg

610g/10mg

Result Display Range

0.001~99.999g/ cm3

Sensor

Loadcell

Water Tank Size

139*100*78mm

Test Temp. Range

5℃~35℃

Calibration Weight

200g

Size

20.5X27X37㎝ (WXDXH)

Weight

4.5kg

Density Balance Method Standards

ASTM D792, ISO 2781 method A, GB/T 533 method A
