Horizontal Flammability Tester  UI-TX40

Horizontal Flammability Tester is used to test textile and material used in vehicles horizontal burning rate when exposure to a small flame.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
  • ISO 3795, ASTM D5132, JIS D1201, SAE J369,
  • FZ/T01028, GB/T8410, GB/T20953

Description

Horizontal Flammability Tester – Horizontal Flammability Chamber is used to test textile and material used in vehicles horizontal burning rate when exposure to a small flame. Horizontal Flammability Test Method includes ISO 3795, ASTM D5132, JIS D1201, SAE J369, FZ/T01028, GB/T8410, GB/T20953 and etc.

Unuo Horizontal Flammability Tester Features

  • -The equipment is made of metal, the main body bracket is made of stainless steel, some of the structure is made of aluminum and copper. The whole equipment is sturdy and durable;
  • -Two timing devices with ignition timer and flame spread timer
  • -User-friendly;
  • -Transparent glass window for good observation of the sample burning test process.
  • -It adopts one-button electric spark ignition control system, which is safe and reliable.
  • -It has a combustion gas flow regulating device, and adjusts the flame height according to the actual operation, which is convenient and quick.

Horizontal Flammability Test Principle

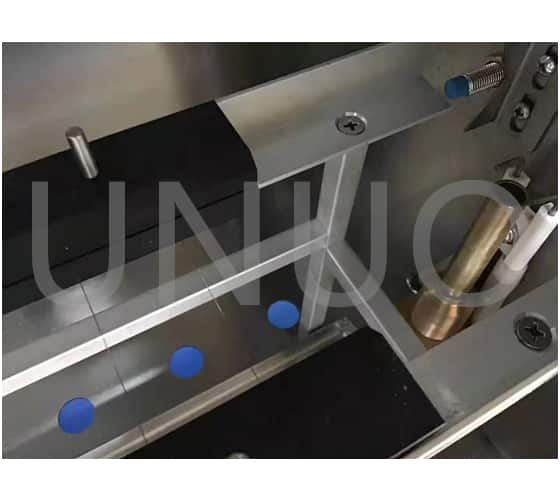

The sample is horizontally clamped on the U-shaped bracket, and is ignited by a predetermined small flame in the combustion chamber for 15 seconds. The flame is ignited at one end of the sample to test the time when the flame spreads to a prescribed distance and the distance of the flame combustion. The test determines if and when the flame extinguishes.

Horizontal Flammability Tester Specification

ModelUI-TX40
flame spread timer0`999.9S
Ignition time15S (can be set)
Sample HolderOuter frame 360mm×100mm, inner frame 330mm×50mm
Sample size356mm×100mm, thickness ≤13mm
Burner tip to sample surface distance19mm
Burner inner diameterDiameter 9.5mm
Flame Height(38±2)mm
Ignition methodOne-button ignition
PowerAC220V 50/60Hz
StandardsISO 3795, ASTM D5132, JIS D1201, SAE J369,

FZ/T01028, GB/T8410, GB/T20953
