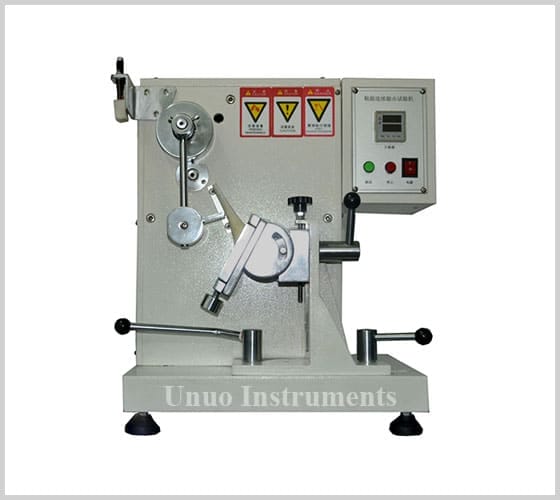

Heel Fatigue Tester UI-FT49

Heel Fatigue Tester is used to test lady shoe heel withstand repeated impacts in daily walking.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
  • BS 5131-4.9, ISO 19956, SATRA TM21, QB/T2864
Get A Quote Today

Description

Heel Fatigue Tester is used to test lady shoe heel fatigue resistance by applying repeated impacts. This heel tester is suitable to test plastic heel and steel heel dowels.

Heel Fatigue Test Method includes BS 5131-4.9, ISO 19956, SATRA TM21, QB/T2864

Unuo Heel Fatigue Tester Features

  • pre-set test cycles function
  • machine auto stop once the broken sample is detected

Heel Fatigue Test Procedure

Clamp the heel on the machine, adjust the height position and angle of the heel according to the equipment, adjust the hammer in the horizontal position, pre-set the number of impacts, start the equipment. The hammer would impact the heel with the specified energy of 0.68J, 60 cycles per minute. Continuous testing until the heel breaks or reaches the specified number of impacts, the equipment automatically stops, and the number of impacts is recorded. This test method is used to assess the resistance of the heel to the repeated impact with certain mass.

Fatigue Tester Specification

Model UI-FT49
Counter LCD display, 0~999999 cycles can be set
Impact Energy (0.68±0.02)N.m
Speed 60 cycles/min
Impact Angle 90°
Pendulum Bob Diameter (57±1)mm, thickness (20±1)mm
Pendulum Diameter (12.5±1)mm, center bob to center hub (152±2)mm
Striker Head(L×W×T) (35±2)×(20±1)×(6±0.5)mm, radius R3mm
Power 1∮AC 220V, 50/60Hz
Standard BS 5131-4.9,  ISO 19956,  SATRA TM21,  QB/T2864
