Maeser Water Penetration Tester UI-FT37

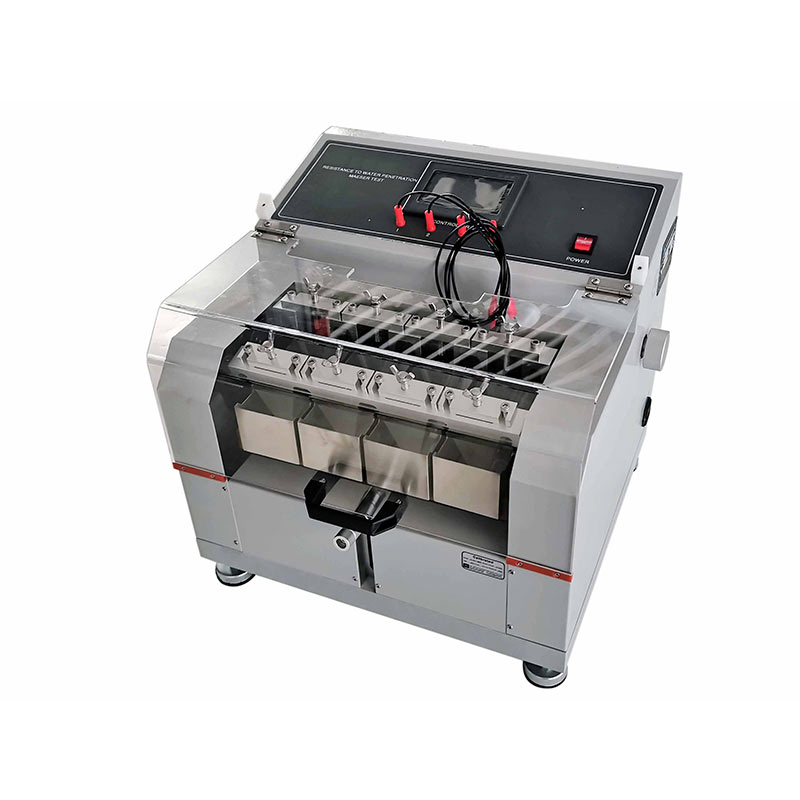

Maeser Water Penetration Tester is used to test footwear upper leather dynamic water resistance.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
  • ASTM-D2099, SATRA TM34
Get A Quote Today

Description

Maeser Water Penetration Tester is used to test footwear upper leather dynamic water resistance. It is suitable for all kinds of shoe upper leather. Water penetration and water absorption can be measure by Maeser water resistance tester.

Unuo Maeser Water Penetration Tester Features

  • – With safety cover;
  • – 4 test positions with separately counter; if one position water penetration is detected, this position would auto stop and the other three would continue the test until the water leakage is detected.

Measer Water Resistance Tester Principle

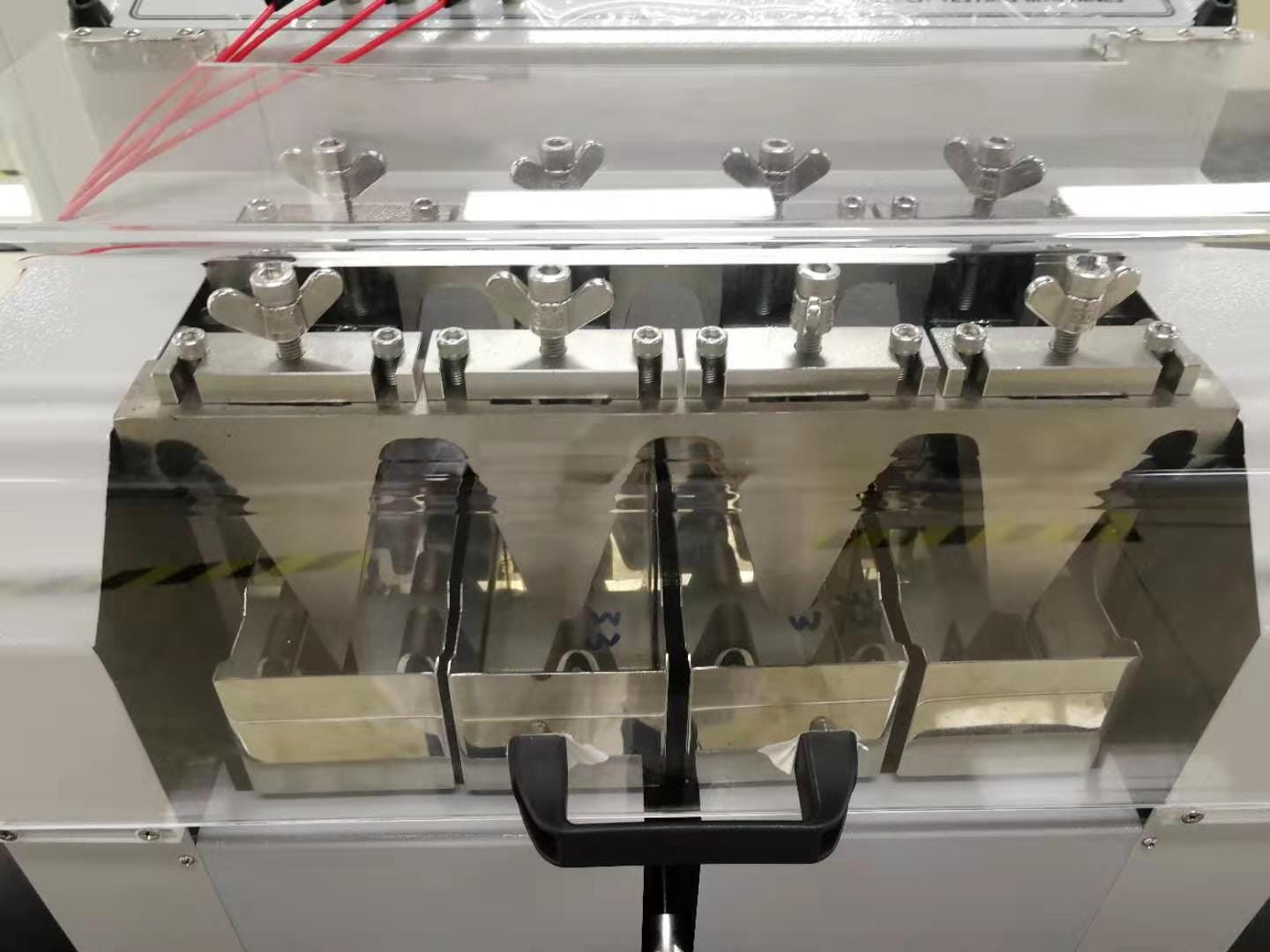

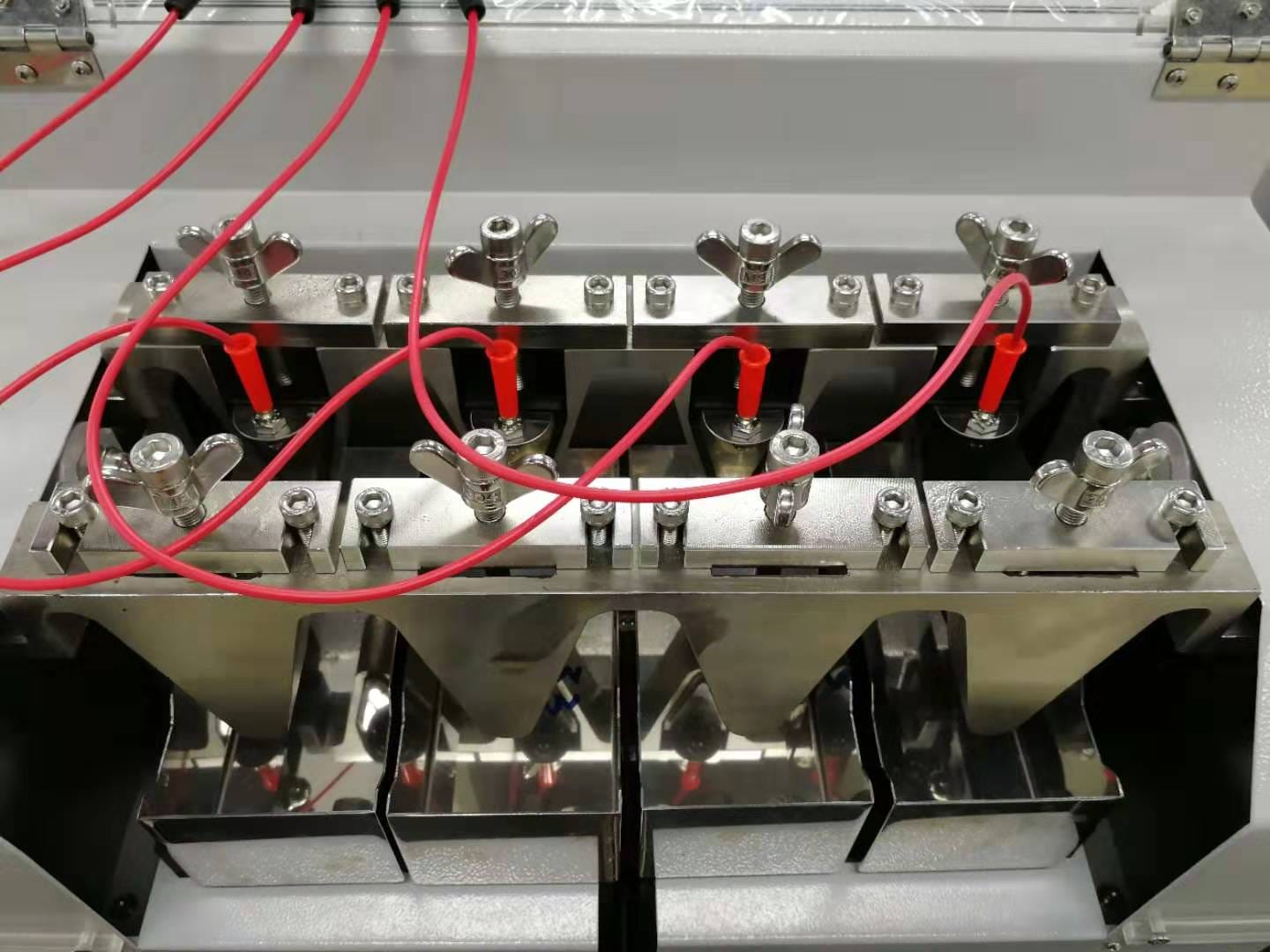

This tester is to simulate shoe leather upper water resistance in daily wear. Amount the sample on V-shaped clamps then to flex the sample in certain angle and speed. The sample would contact with steel balls. With the steel ball, the machine would detect the water penetration when a current leakage is found. Here for more leather testing machine.

Water Resistance Tester Specification

Model UI-FT37
Test Positions 4
Test Speed 90±5r/min
Flexing Angle Type 1:30°±1° Type 2:32°±1°
Counter 0~99999999 cycles
Power 1∮,AC 220V,2A
Standards ASTM-D2099, SATRA TM34
