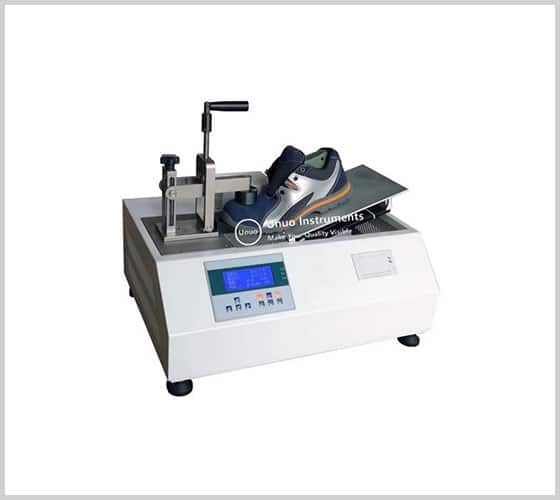

Shoe Bending Stiffness Tester UI-FT25

Shoe Bending Stiffness Tester is used to test shoe stiffness/rigidity by flex shoe to certain angle by certain force.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
  • ISO-20344, ISO 17707-2005, GB/T20991-2007

Description

Shoe Bending Stiffness Tester – Shoe Rigidity Tester is used to test shoe stiffness/rigidity by flex shoe to certain angle by certain force.

The shoe bending stiffness test is a necessary test before outsole flexing test as per ISO 20344. Footwear which requires force (30±0.5)N to flex lower than 45° from horizontal is not suitable to test on outsole flexing tester.

Shoe Bending Stiffness Tester Principle

This shoe rigidity is a shoe flexing tester. Clamp the shoe forepart on the machine and apply a force of (30±0.5)N and flex the sample at a speed of (100±10)mm/min until the force has been exerted. Then to measure the angle at this point.

Unuo Shoe Rigidity Tester Specification

ModelUI-FT25
Capacity200N
Speed100mm/min
Flex Plate315mm
Bending Position1/3 of finished shoe
Sample SizeFrench standard: Size 39, 42 ; British standard : Size 6, 8
Angle Resolution0.1°
Test Required Force30N
Power1∮AC 220V 50/60HZ
StandardISO-20344, ISO 17707-2005, GB/T20991-2007, QB 2885-2007, AS/NZS 2210.2 section 8.4.1
