Salt Spray Machine UI-E01A

Salt Spraying Machine is used to test material Corrosion resistance by producing salt fog.

  • ASTM B117 | ASTM B268 | ISO | GB
  • 18 months warranty
  • ISO17025 calibrated certificate
Get A Quote Today


Salt Spray Machine – Salt Spray Test Chamber is used to test material Corrosion resistance by producing salt fog. So it is also called salt fog test chamber. This salt spray cabinet is widely used in painting, coating and other industries. Salt Spray Test Method includes ASTM B117, B268, CNS 3627, 3885, 4159, 7669, 8886, JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO3768, 3769, 3770, GB/T2423, GJB 150 and etc.

As required by different test standards, the salt spray test machine can be mainly divided into 4 kinds of testers – cass test chamber, nss salt spray chamber, ASS test chamber, cyclic corrosion chamber.

Unuo Instruments is salt spray chamber manufacturers, suppliers and supplies salt spray chamber in various kinds of size for choice. Here for more Envrionment Tester. Contact Unuo Today for competitive salt spray machine price

1. Unuo Salt Spray Corrosion Test Chamber Features

  1. Double over-temperature protection, the healing power can be automatically cut off when there is a temperature control table failure or a heating system failure. Avoid excessive temperature damage to the Salt Spray corrosion test chamber.
  2. Double low water level protection to prevent dry burning of test salt spray machine and pressure tube heating tube.
  3. Overload short circuit protection. Prevent damage to the instrument and the internal electronic control components of the instrument when an abnormality occurs. Any low water level appears.
  4. Metering cylinder: Two built-in mist collecting cylinders (one E01A-108 type). It is less susceptible to damage than traditional external models.
  5. Salt Spray Nozzle: Precision quartz glass nozzle. Guaranteed to use 4,000 hours without crystallization. Spray tower with cone disperser, with guiding fog, adjusting the amount of fog, and even fogging, etc.

2. Unuo Salt Spray Machine Specification

Model UI-E01A-108 UI-E01A-270 UI-E01A-800 UI-E01A
Test Chamber Volume 108L 270L 600L Test Volume Can be customized
Test Chamber size (cm) 60*45*40 90*60*50 120*100*50
Machine Size(cm) 107*60*118 141*88*128 190*130*140
Brine tank size 15L 25L 40L
Temp. Of test chamber NSS & ASS = 35±1℃ / CASS = 50±1℃
Temp. Of Pressure Barrel NSS & ASS = 47±1℃ / CASS = 63±1℃
Compressed Air Pressure Air inlet pressure2.00kgf/cm2, Spray port 1.00 kgf/cm2
Amount of spray 1.0~2.0mL/80cm2/h (Collect at least 16 hours, then to calculate the average)
Test Chamber relative humidity Above 85%
Spray Method Continuous spray
Heating Method Electric heating (titanium tube)
Power Single Phase AC220V10A Single Phase AC220V15A Single Phase AC220V20A Single Phase AC220V20A
Machine Material 1. 5MM imported P.V.C;

(Note: for NSS & ASS test, thickness=5mm; CASS =8mm)

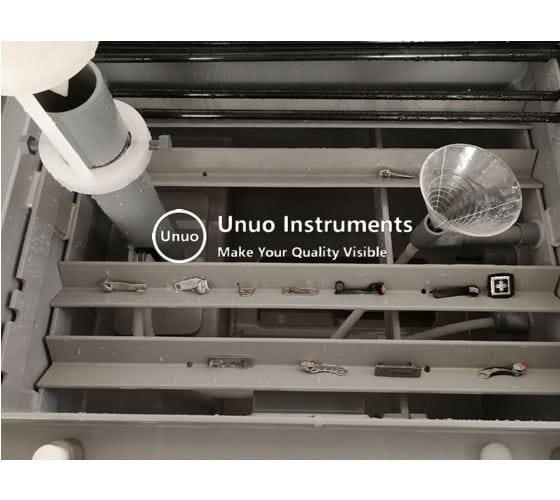

2. Sample Holder:¢10.0MMCorrosion resistant tempered glass rod; Plastic steel V-shaped frame and glass rod storage. Ensure that the test object is at a 30 degree angle。
3. Pressure barrel is welded seamlessly with 2.0mm SUS201 stainless steel plate.
4. Titanium tube. Long service life and high corrosion resistance.

Chamber cover adopts 5mm Imported transparent acrylic sheet.

salt spray test standard ASTM B-117, B-268, CNS 3627,3885, 4159, 7669, 8886, JIS D-0201, H-8502, H-8610, K-5400, Z-2371, ISO3768, 3769, 3770, GB/T2423, GJB 150.
