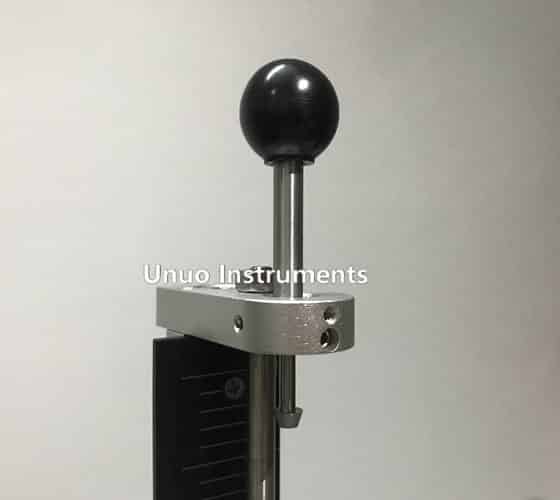

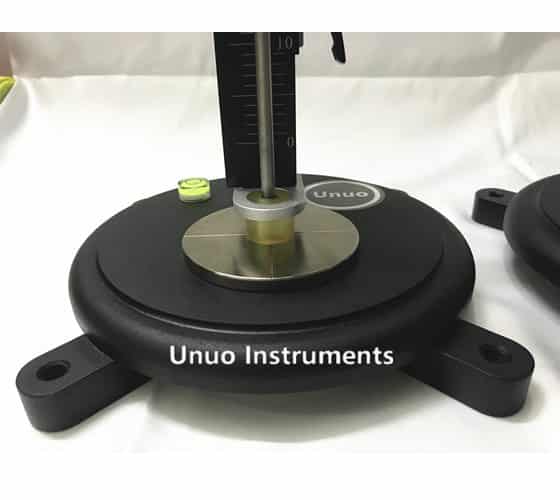

Vertical Rebound Tester UI-FT80

Vertical Rebound Tester is suitable for vertical resilience testing of elastic materials such as rubber.

  • Unuo Instruments
  • 18 months warranty
  • ASTM D2632

Description

  Vertical Rebound Tester is suitable for vertical resilience testing of elastic materials such as rubber. Unuo Vertical Rebound Resilience Tester is designed and applicable according to ASTM D2632. Here for more rubber testing machines.

Principle:

Vertical Rebound Resilience Tester tests the elasticity of rubber materials in a free fall weight method. First adjust the horizontal position of the instrument, then raise the drop weight to a certain height. When placing the test piece, pay attention to make the drop point 14mm from the edge of the test piece. The first three trials were not used and the average of the fourth, fifth and sixth rebound heights was recorded.

Unuo Vertical Rebound Tester Specification

ModelUI-FT80
StandardASTM-D2632
Stroke400mm
Hammer Mass28±0.5g
Sample Thickness12.5mm
