DIN Abrasion Tester UI-FT24
Description

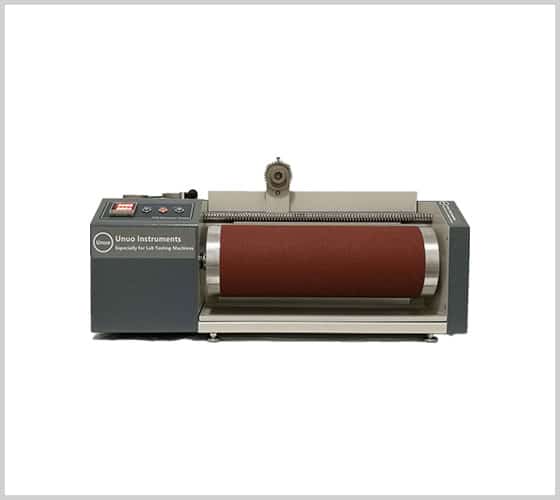

DIN Abrasion Tester – DIN Abrader is a rotary drum abrasion tester to test wear abrasion resistance of rubber products on specified grade abrasive paper under certain pressure. DIN abrasion standard includes ISO 4649, DIN 53516, ASTM D5963, SATRA TM174, and etc.
Unuo Instruments is DIN Abrasion Tester manufacturer and supplier with reliable quality. Contact us today for DIN abrasion tester price!
1. Unuo DIN Abrader Features
- Drum heating function available; To simulate the real-world wear abrasion under certain temperature up to 100℃.
- Can do rotating test and non-rotating test;
- Brushless motor driven;
- Iron frame with painting, aluminum rotary drum;
- Pre-set test cycles function; Auto-stop when pre-set cycles are reached;
- Button Control & Advanced Touch Screen Control for your choice;
- Dust collection system can be equipped optionally.
- Detailed operation manual & video are provided for DIN Abrasion Test Procedure (See the bottom of this page. Operation Video);
2. Unuo DIN Abrasion Tester Accessories
- Pre-rub metal block
- Circular cutting die diameter 16mm
- Brush to clean abrasive paper
- Abrasive paper #60
- Load weight; 2.5N + 2.5N + 5N;
- additional 10N load can be customized
- Standard rubber – Optional
- Sample cutting device – Optional
- Density balance – Optional
- Dust collection system – Optional
3. DIN Abrasion Tester Working Principle

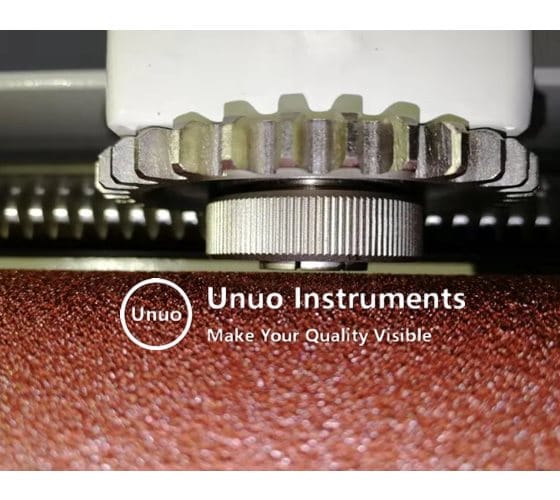

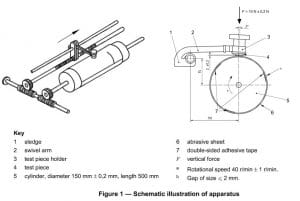

DIN Abrader(Abraser) consists of a rotating drum whose surface would be stick with sandpaper 60#. DIN Abrasion is one of the most common rubber abrasion test methods. Equipped with a rotational block, Unuo DIN abrasion machine can do both rotating and non-rotating tests.
Clamp the rubber sample on the specimen holder, the DIN abrasion machine would rub the sample on the drum under a certain inclination and a certain load. Then to measure the sample volume loss after rubbed for a certain distance.
4. How To Calculate Abrasion Resistance of Rubber / DIN Abrasion Test Results (ISO 4649 abrasion test for example)
4.1 Relative Volume Loss
- ∆mt : the mass loss, in mg, of the test rubber test piece;
- ∆mconst : defined as 200mg for method A using standard reference compound No. 1;
- Pt: the density, in mg per cubic millimetre , of the test rubber;
- ∆mr :the mass loss, in mg, of the reference compound test piece.
4.2 Abrasion resistance index, ARI
- ∆mr : the mass loss, in mg, of the reference compound test piece;
- Pt: the density, in mg, of the test rubber;
- Pr: the density, in mg, of the reference compound;
- ∆mt : the mass loss, in mg, of the test rubber test piece;
We do welcome your inquiry about DIN abrasion resistance tester price, other rubber testing instruments, and related details. Here for more Abrasion Tester.
5. DIN Abrasion Tester Specifications
| Model | UI-FT24 |
| Load | 2.5 ± 0.1 N; 5.0 ± 0.1N; 10.0 ± 0.2 N |
| Lateral displacement | 4.2mm±0.04mm per revolution of the drum |
| Drum | Diameter 150 ± 0.2 mm, length 500mm |
| Rotating Speed | 40 ± 1r/min |
| Wear Stroke | 40 ± 0.2 m ≈ 84 cycles |
| Test Method | Rotation and non-rotation |
| Angle of dip | 3° |
| Abrasive Paper | 60# |
| Standard | BS 903, GB/T 9867, ISO 4649, JIS K6264, SATRA TM174, ASTM D5963, QB/T 2884 2007, ISO 20871:2001, BS EN 12770:2000, DIN53516 |
| Power | 1∮ 220V |
6. DIN Abrasion Test Procedure & Video
7. FAQ
What is a DIN abrasion test?
DIN abrasion test(ISO 4649/ ASTMD5963) is to test rubber and elastomer products wear resistance by rubbing a sample on a P60 sandpaper with a certain load like 5N, 7.5N or 10N. By comparing the abrasion loss with standard rubber, the sample abrasion resistance Relative Volume Loss & Abrasion resistance index, ARI can be calculated.
ISO 4649 VS DIN 53516 DIN Abrasion Test Method Comparison
DIN 53516 is replaced by ISO 4649. But there are still many industries using it. Generally speaking, this 2 DIN abrasion test methods have the same specification requirements for the DIN Abrader. The most obvious difference is ISO 4649 mentions 2 abrasion test methods – non-rotating or rotating while DIN 53516 has no clear requirements for this. Both standards are adopted to determine abrasion resistance of rubbers.
DIN Abrasion Rotating Method VS Non-rotating Method
The DIN abrasion rotating method would make the sample to be rubbed more uniform. But, the non-rotating is more commonly used.
