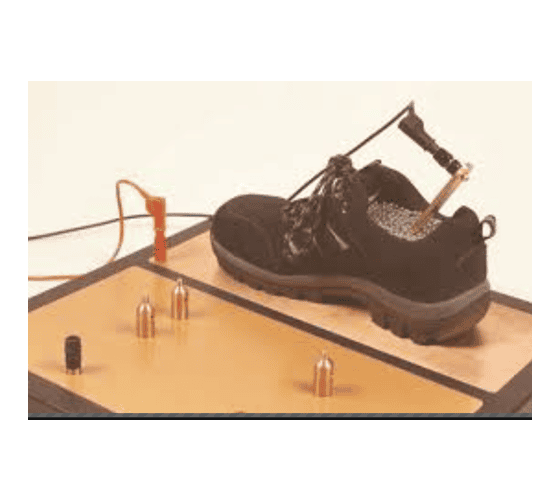

Safety Shoe Electrical Resistance Tester UI-FT06

Safety Shoe Electrical Resistance Tester is to test the electrical resistance of conductive footwear and antistatic footwear.

  • Unuo Instruments
  • 18 months warranty
  • ISO 20344, ANS-Z41 and etc

Description

Safety Shoe Electrical Resistance Tester is to test the electrical resistance of conductive footwear and antistatic footwear as per ISO 20344, ANS-Z41, EN344 and etc.

Principle: For conductive footwear, the electrical resistance is measured in dry atmosphere. For antistatic footwear, it is measured in dry atmosphere and afterwards, conditioning in a wet atmosphere. Some would do Safety Shoe High Voltage Tester- 20KV as well.

Development: In ISO 20344, it requires a voltage of (100±2) V DC. Many customers have higher standard for the voltage to their footwear. We developed the machine to multi options of voltage: 100/250/500/1000V.

Unuo Safety Shoe Electrical Resistance Tester Features:

  • Multi options of voltage;
  • Easy operation.
ModelUI-FT06
Voltage(DC)100/250/500/1000V (optional)
Resistance Measure Range100k~9999MΩ
Power1∮, AC220V
StandardANS-Z41 section 3, ISO 20344, CSA-Z195 section 5.6, GB/T20991 section 5.10, NOM-113-STPS-2009 Section 8.7, EN344, CAN/CSA-Z195
