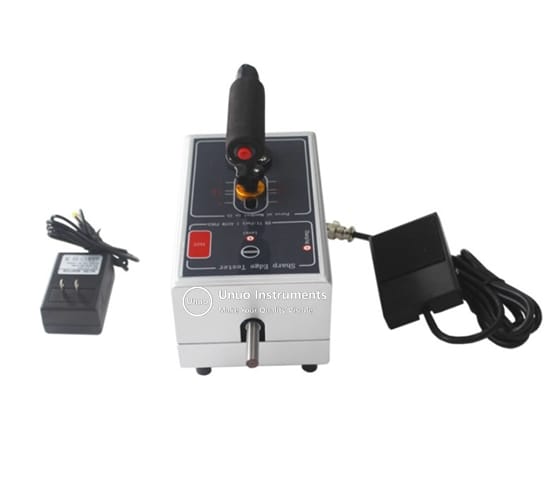

Sharp Edge Tester UI-T03

Sharp Edge Tester is used to test if toy or other test sample has hazardous sharp edge or not.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
  • ASTM F963 4.7, EN71 8.11, GB6675.2 5.8, 16CFR 1500.49

Description

Sharp Edge Tester is used to test if toy or other test sample has hazardous sharp edge or not. Sharp edge tester Test method includes ASTM F963 4.7, EN71 8.11, GB6675.2 5.8,16CFR 1500.49 and etc.

Sharp Edge Test Procedure

A PTFE tape was wrapped around the steel shaft of the edge sharpness tester. The edge of the test object formed a 90° angle with the steel shaft. The test object was placed in the middle of the adhesive tape to adjust the angle of the test object to find the most unfavorable position. The test object applies force to the adhesive tape to 6N (1.35LBS). At this time, the power indicator light is on, and the equipment test switch is activated to rotate the steel shaft one turn. Carefully disassemble the adhesive tape. Do not damage the cut size. Measure the length of the cut. If the length exceeds 1/2 in. (12.5 mm), the test object is sharp. Sharp Edge Tester is purchased together with Sharp Point Tester by most customers.

Edge Sharpness Tester Specification

ModelUI-T03
Steel shaftDiameter (9.53±0.12)mm, hardness > 40HRC
Speed23±4mm/s
Force6N(1.35LBS)
PowerAC220V 50Hz
Size25*15*20cm
Weight7.5Kg
StandardASTM F963 4.7, EN71 8.11, GB6675.2 5.8,16CFR 1500.49
