Single Column Universal Testing Machine UI-1300

UTM is used to do tensile, peel, shear, bend, and other tests of materials.

  • ISO 20344 | ASTM D2061 | ISO 22776
  • Meet ISO, DIN, GB, BS, EN, ASTM and etc.
  • 18 months warranty
  • CE & ISO 17025 Calibrated Certificates
Get A Quote Today

Description

Single Column Universal Testing Machine is a type of universal testing system which has 1 column and can well perform tests under 5KN. By changing the test grips (fixtures), single column test stand is applicable for different UTM test standards and materials.

1. Universal Testing Machine Application

This universal test stand is suitable for pull test, tensile test, shear test, compression test, peel, adhesion/bonding and elongation test.

Test materials with universal testing machine: footwear, leather, rubber, plastic, paper, textile, toy, hook and loop,packaging, mask and etc.

2. Unuo Single Column Universal Testing Machine Features

  • Test capacity up to 5KN
  • Test stroke can be customized
  • Universal testing machine grips: can be customized
  • Equipped with brand serve motor and load cell
  • Thermal printer
  • Touch screen control

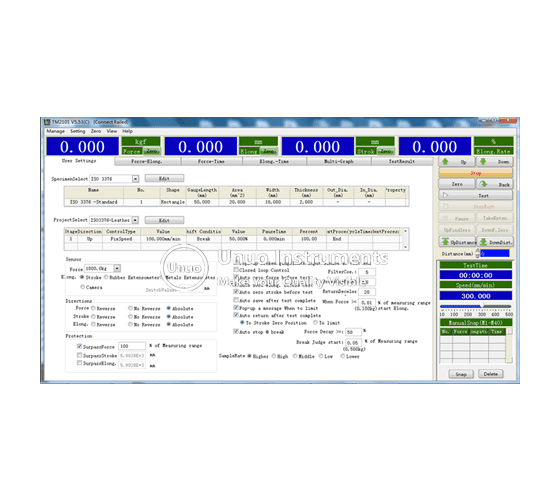

  • Computerized tensile testing machine, can connect with computer
  • Conduct various tensile test methods by changing the grips accordingly

Compared with dual column universal testing machine, single column test stand is smaller no matter in dimension or max. test capacity.

3. Test Specimen For Tensile Testing

Test specimen may vary according to test standards. Unuo Instruments supplies different sample cutter for UTM and different capacities load cell.

4. Unuo Single Column UTM Specification

ModelUI-1300
Capacity250N, 500N, 1KN, 2KN, 5KN (Optional)
Walking space(without grip)650mm
Test Speed50-500mm/min
UnitG, kg, N, KN
Power1 phase 220V, 50/60hz
Size Approx.450×500×1400mm
Weight Approx.60Kg
