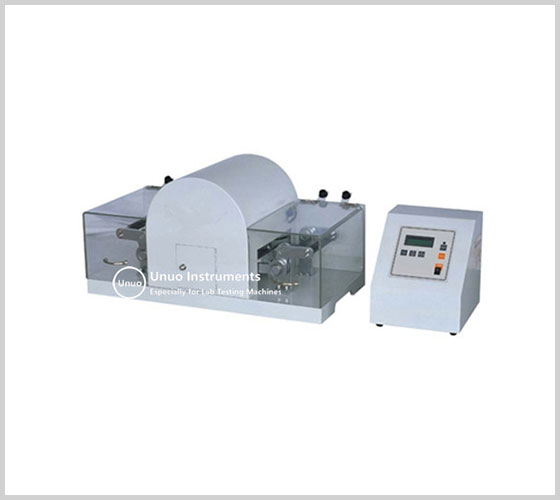

Penetration-Resistant Insert Flexing Tester UI-FT05

Penetration-Resistant Insert Flexing Tester is used to test penetration resistant inserts flexing resistance.

  • Unuo Instruments
  • 18 months warranty
  • CE & ISO17025 calibrated certificate
  • EN 12568, ISO 20344 and etc
Get A Quote Today

Description

Penetration-Resistant Insert Flexing Tester, also named as Steel Midsole Flexing Tester, is used to test penetration resistant inserts flexing resistance. As described in EN 12568, ISO 20344, the inserts shall exhibit no visible signs of cracking, disintegration or delamination after having been subjected to 1 *106   (one million) flexion cycles.

1. Machine Principle

move the free end of the inserts through a specified distance at a defined rate and a clamoing device consisting of 2 elastic interlayers with 2 metal clamping plates at least 130mm wide. For penetration-resistant inserts, there is another test–Nail penetration(puncture) test.

In the sero position, the guide acts at a distance of (70±1)mm from the clamping plates. In order to accommodate all sizes of inserts, the flexing line can be shifted by up to 10mm in the direction of the heel. The apparatus is suitable to flex at frequency of (16±1) Hz.

2. Unuo Penetration-Resistant Insert Flexing Tester Features

  • With safety cover to protect operator.
  • 2 test positons
Model UI-FT05
Test positions 2
Flex Height 33mm
Distance between guide act and clamping plate (70±1)mm
Speed 16 cycles/s(960cycles/min)
Total test cycles 1000000
Power 1∮, AC220V
Standard ENISO20344 Section 5.9,AS/NZS 2210.2 Section 5.9,GB/T 20991 Section 5.9, EN 12568 Section7.2.2
